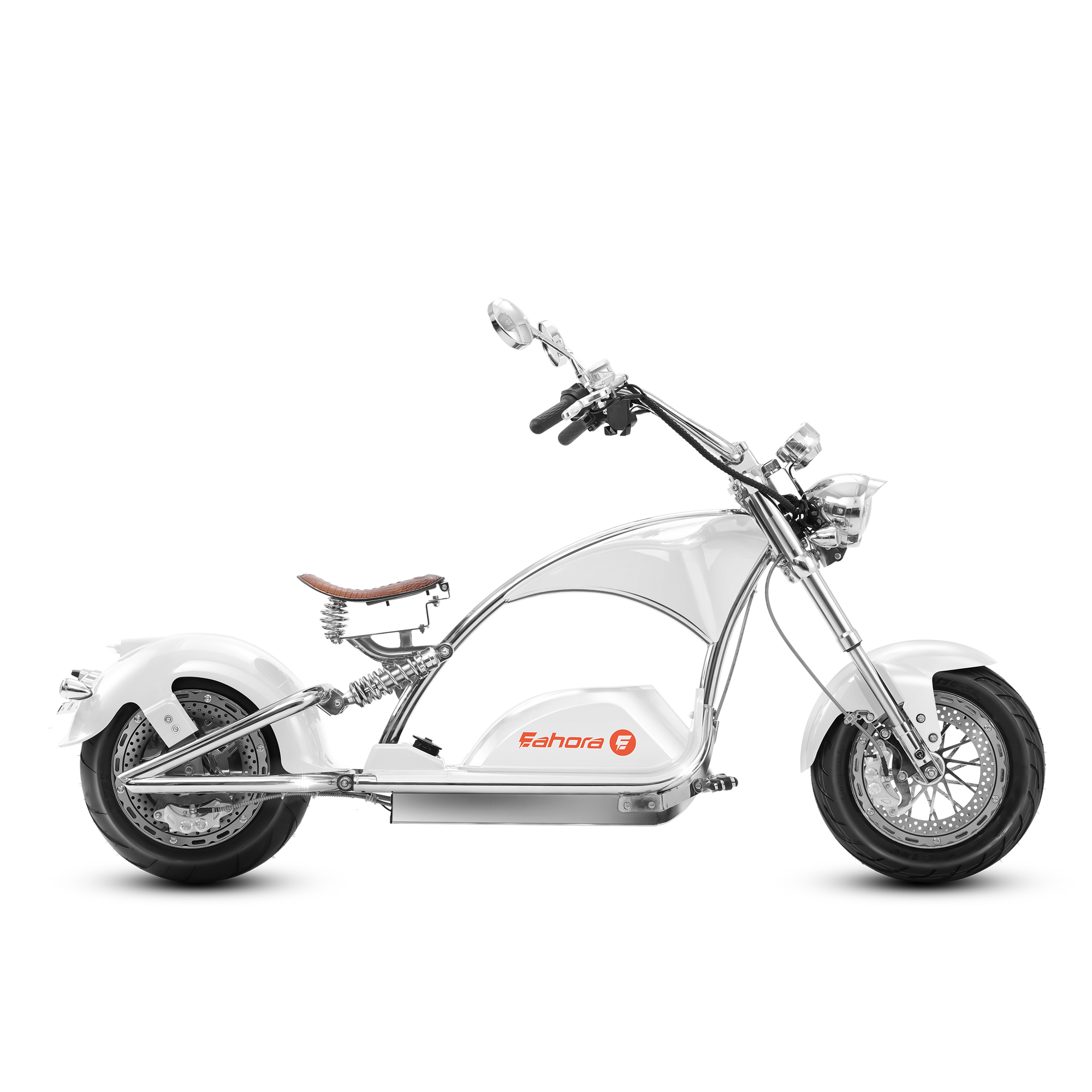

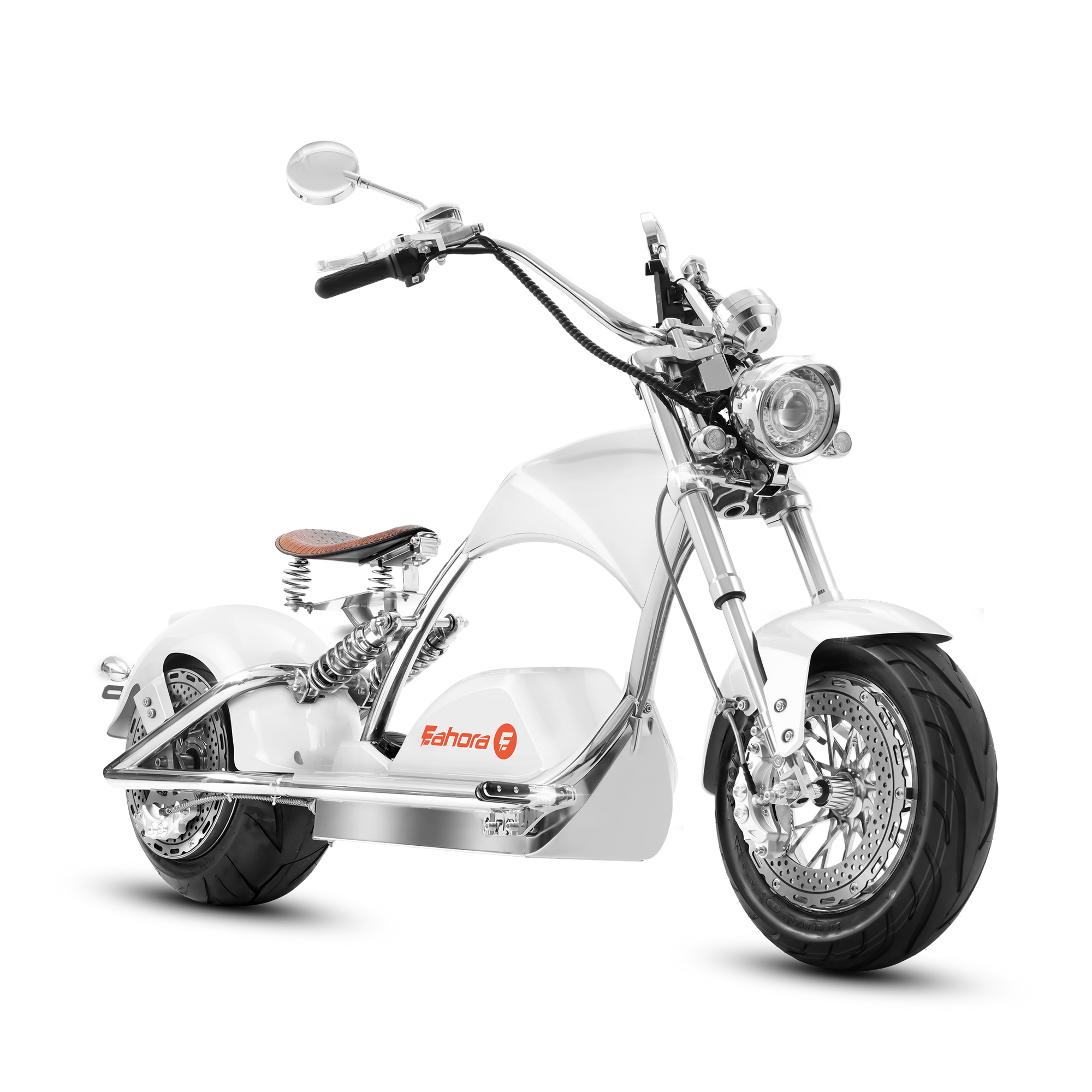

Eahora Chrome 4000W M1PS - White
ABOUT Plating M1PS
Chrome M1PS is the perfect combination of sleek design and raw power. Its electroplated frame makes it waterproof, rust proof and undeniably eye catching, while its 4000W motor combined with Samsung battery technology powers you across any terrain at lightning speed – from smooth acceleration to adjustable settings that guarantee impressive results each time.
WHAT'S IN THE PACKAGE
Delivered with 85% assembled:
Scooter & Battery;
Original charger & Fast charging cable;
Handlebar & Handlebar mount clamp;
Pedals & Extension bracket;
Front tire & Front fenders;
Display & Phone holder & Rearview mirror ;
Product manual & Toolkit & Remote control & Key.
Assembly Video
Street-Legal
All Eahora scooter comes with VIN, MCO, and Bill of sale
Free Shipping
Average 5~7 days delivery
1-Year Warrnaty
Technical support with high-quality standard
Quick Response
Respond within 24 hours

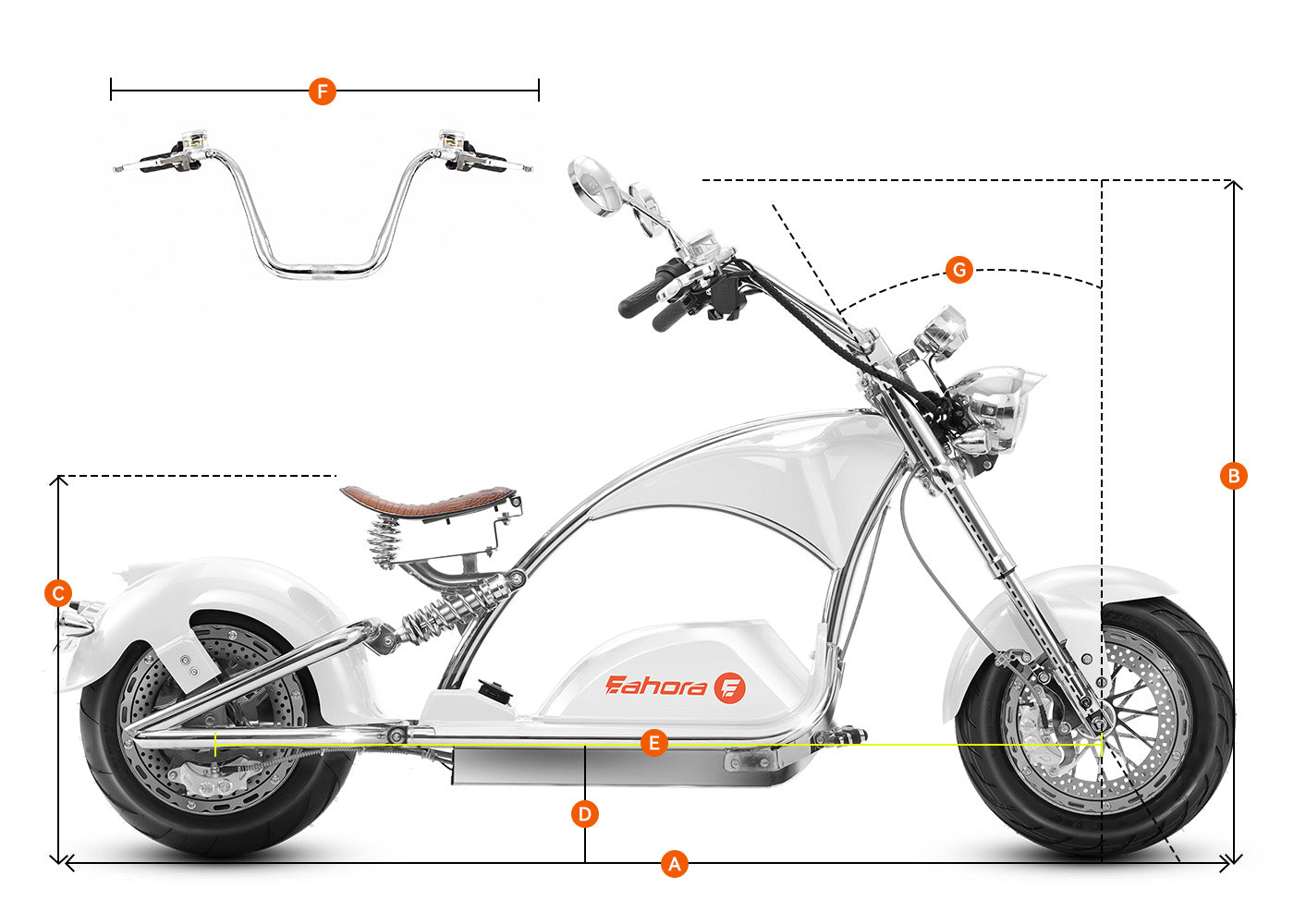

Size and Geometry
Recommended Rider Height: 5'1" - 6'6" or 155CM - 200CM
Ⓐ - Total Length: 83.46'' or 212CM
Ⓑ - Handlebar Height: 43.30'' or 110CM
Ⓒ - Seat Height: 25.59'' or 65CM
Ⓓ - Ground Clearance: 5.31'' or 13.5CM
Ⓔ - Wheelbase: 59.8'' or 152CM
Ⓕ - Scooter Width: 33.46'' or 85CM
Ⓖ - Rake: 40°
Technical Specifications
To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Charging Time
3 ~ 4 hours
Range per Charge
65 - 75 miles (Level 1)
Scooter Weight
187.4 lbs in total with the battery.
Payload Capacity
Recommend rider weight within 440 lbs.
ELECTRONIC SYSTEM
ELECTRONIC SYSTEM
Motor
4000W brushless DC geared motor(Brand: QS Motor) with 178 NM max torque
Battery
72V 40AH SAMSUNG lithium battery with BMS (2.88 KWH)
Charger
72V ~ 13A fast charger (Charging time: 3-4 Hours), with anti-overcharging feature

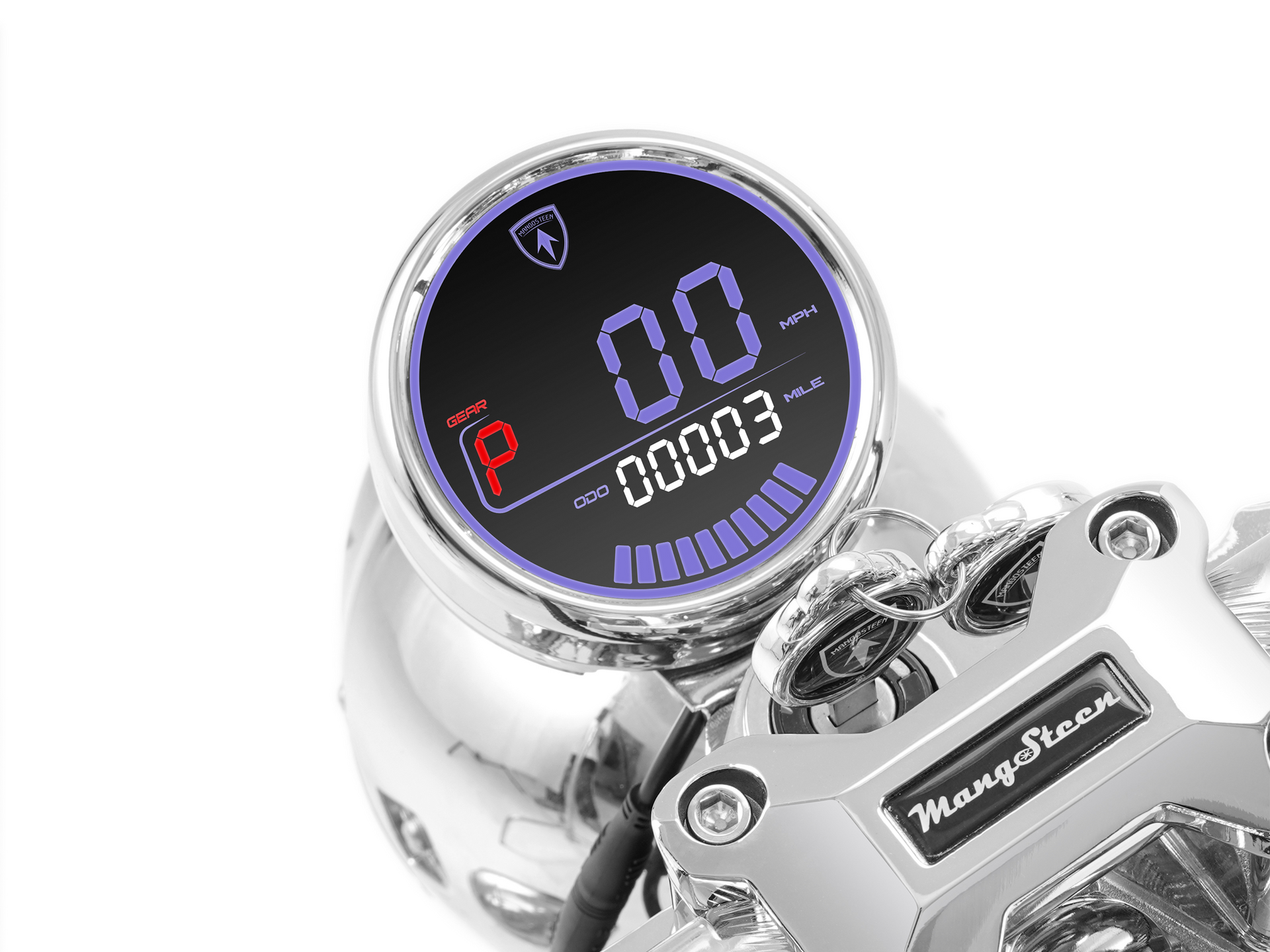

Display
IP6 color LCD display(showing MPH) with speedometer, odometer, trip odometer, throttle gear and more
Controller
72V 70A integrated controller with P gear (Brand: YQ Controller)

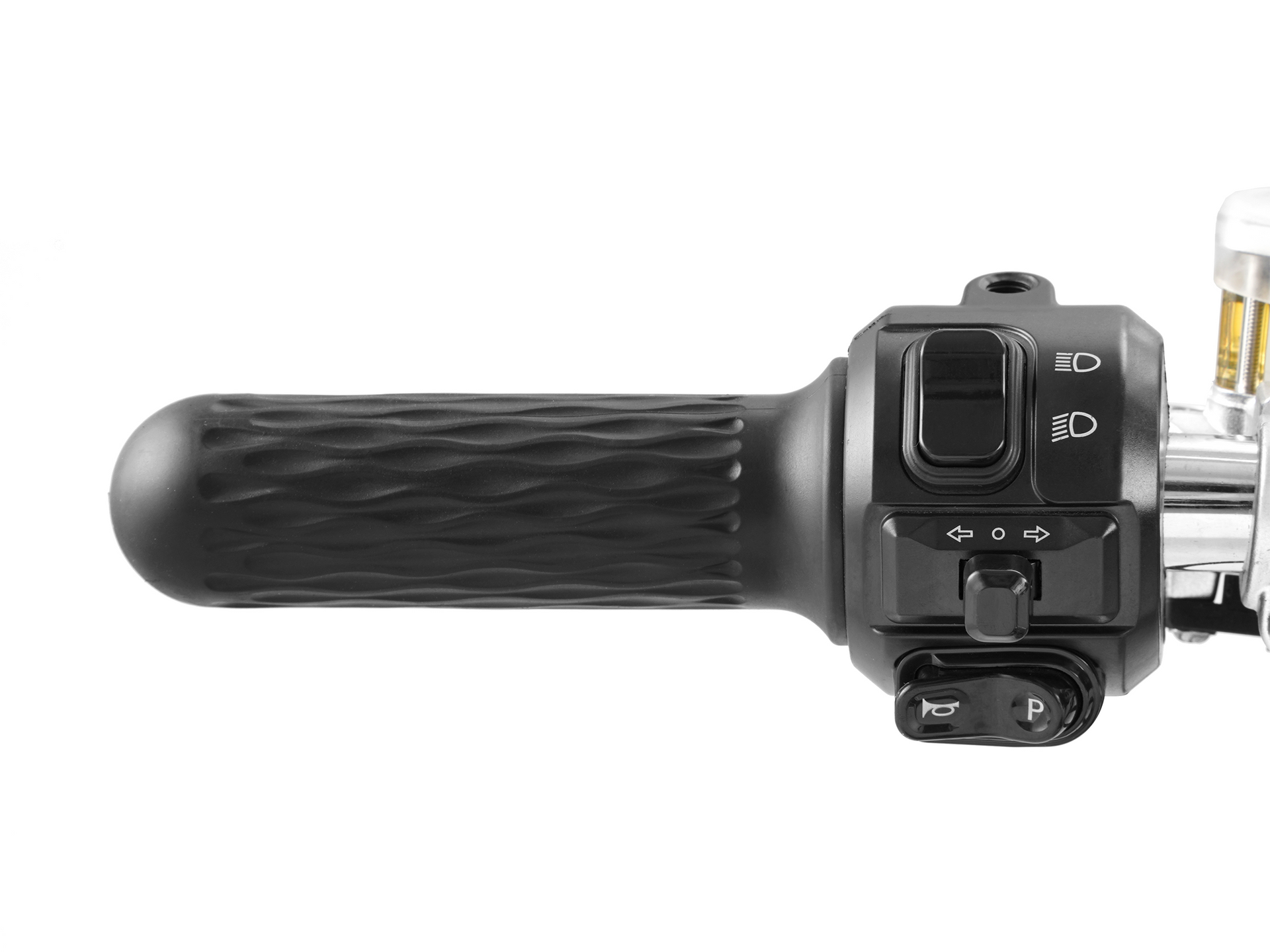

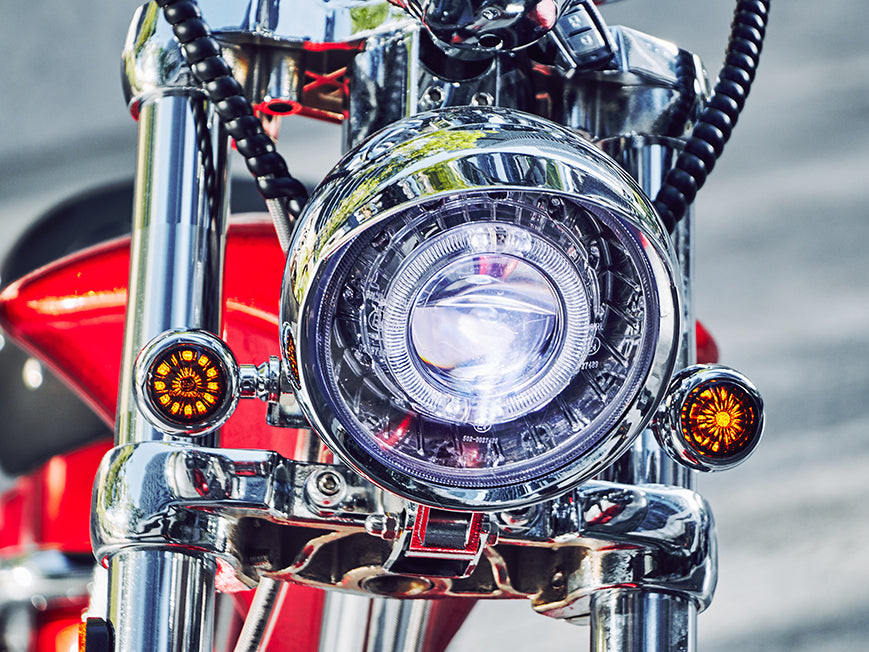

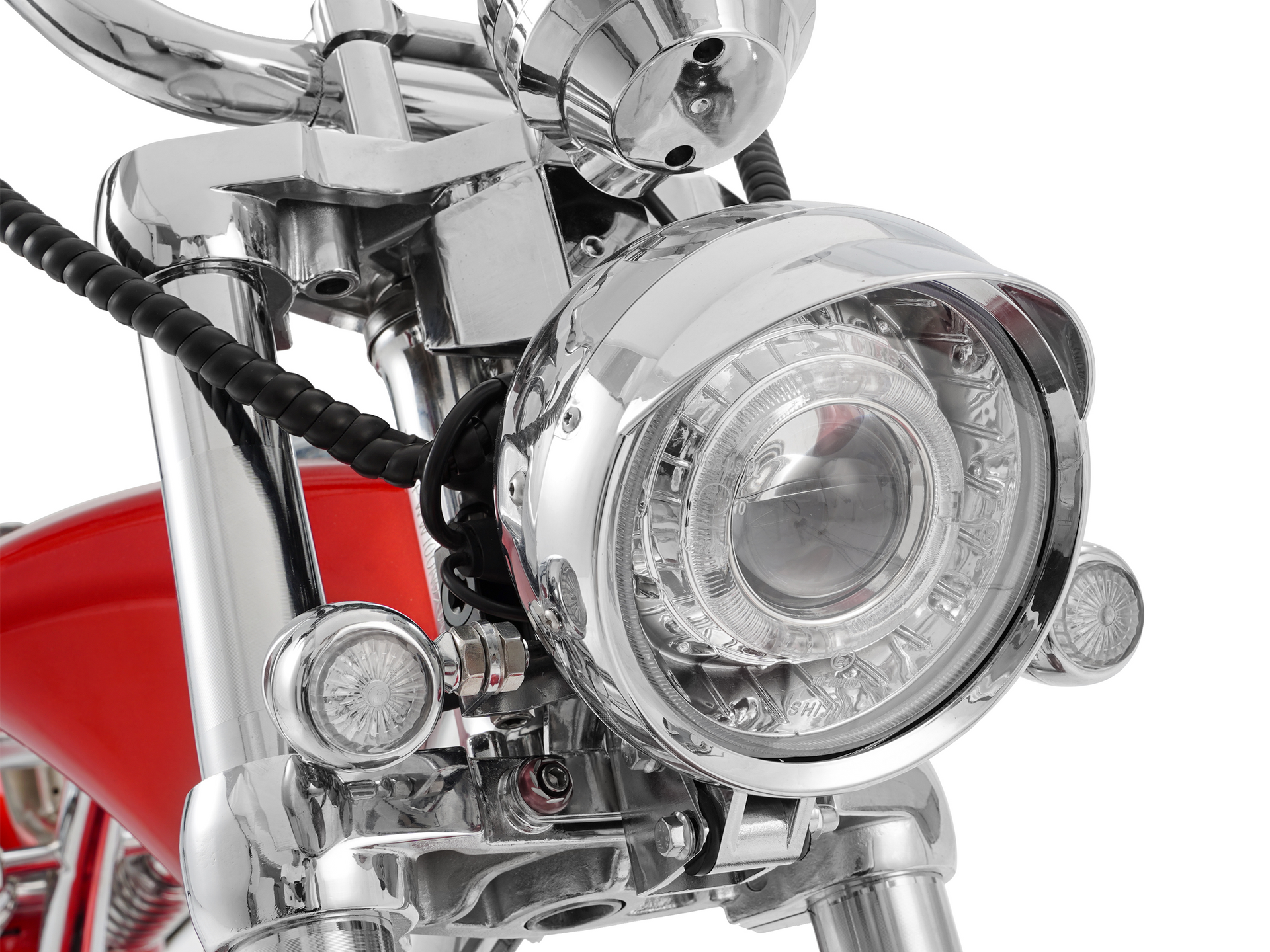

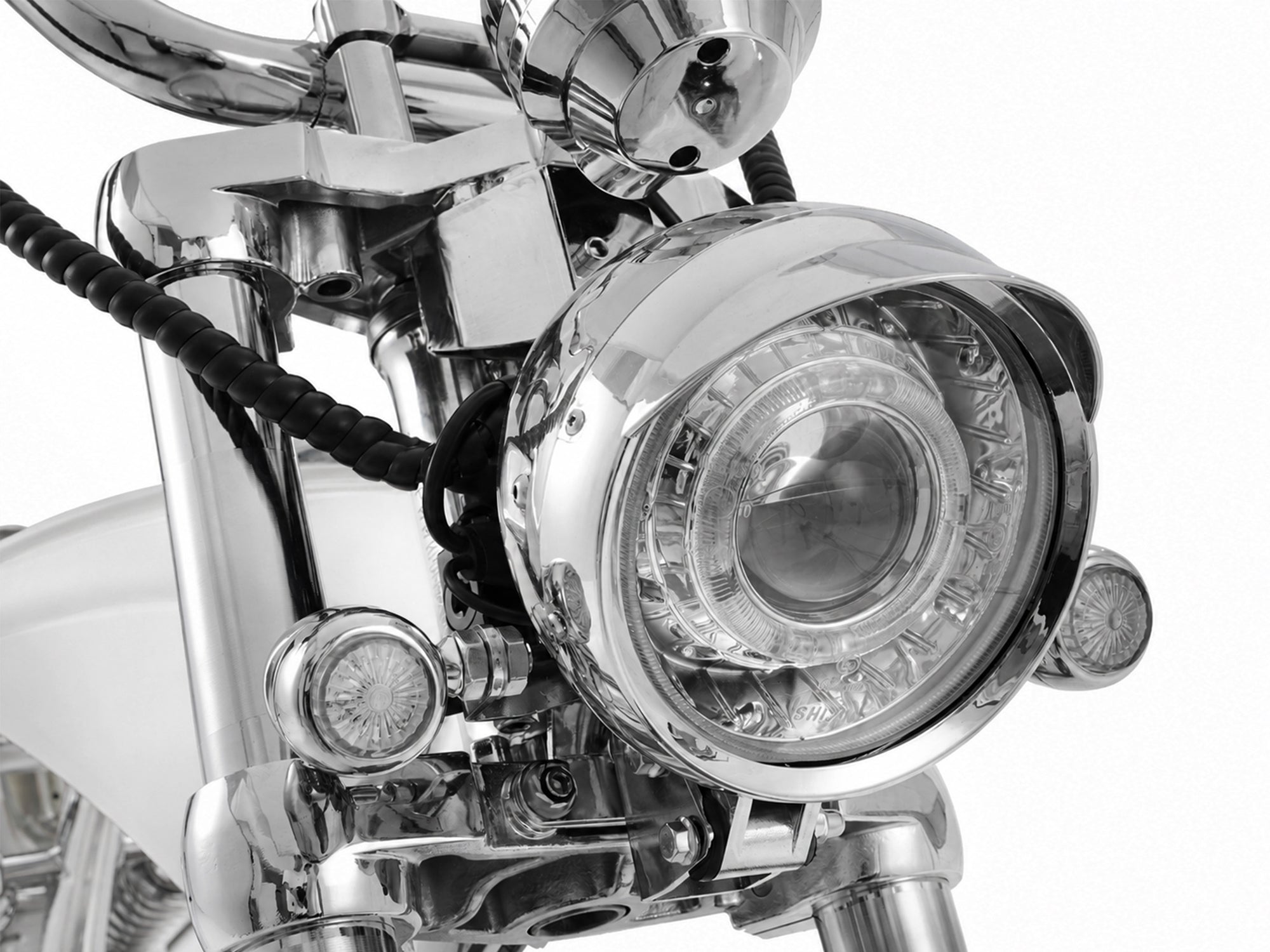

Lights
12V LED Headlight
Front: high low beam with turn signal light
Rear: integrated taillight with brake light, turn signal light and license plate light
Kickstand
Kickstand with electirc cut-off
Wiring
Waterproof Integrated Harness
Waterproof Rates
IP66 Waterproof, including motor battery and wiring.
SCOOTER COMPONENTS
SCOOTER COMPONENTS
Frame
Weldless steel tube

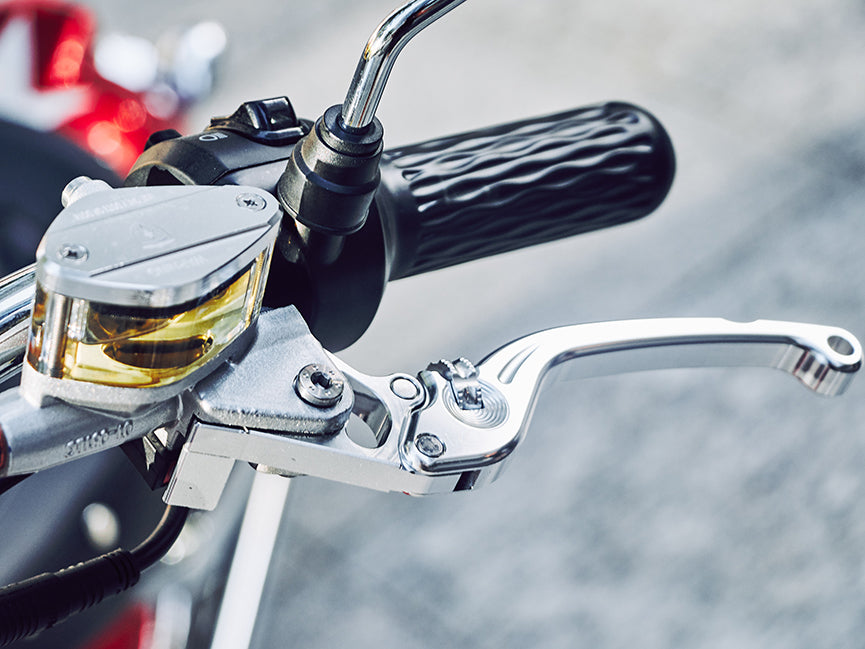

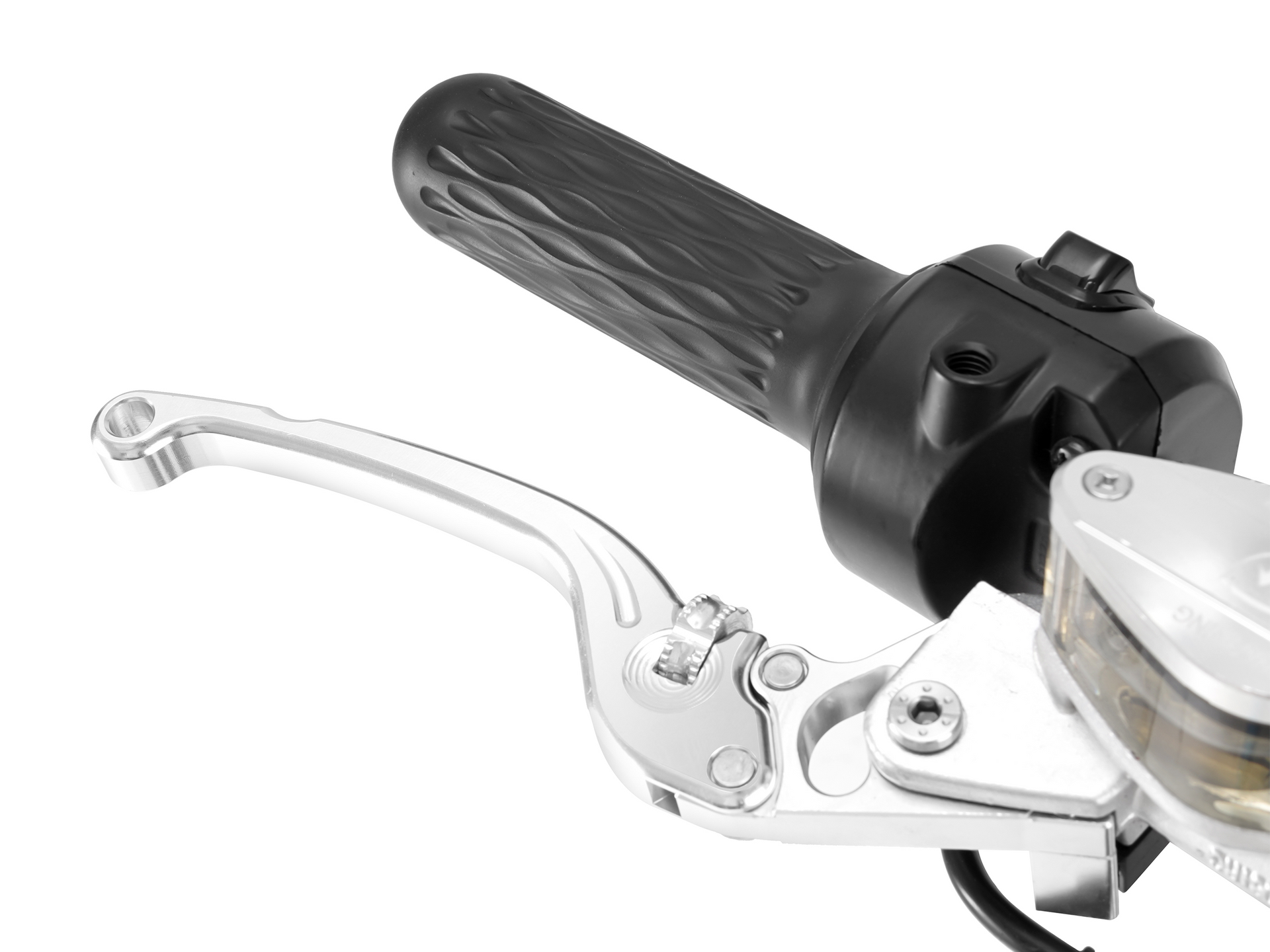

Brakes
Hydraulic disc brakes with DOT 3 braking fluid (Brake rotor size: F 318 MM / R 318 MM)
Hub Wheel
Aluminum 12IN Rims(Width: F 10.8IN / R 10.8IIN )
Tires
With an average lifespan of 6200 miles, TNT Straight grain vacuum tubeless tires (F: 120/40-12 ; R: 215/40-12)
Fork
Hydraulic shock suspension(Length: 28.1IN )

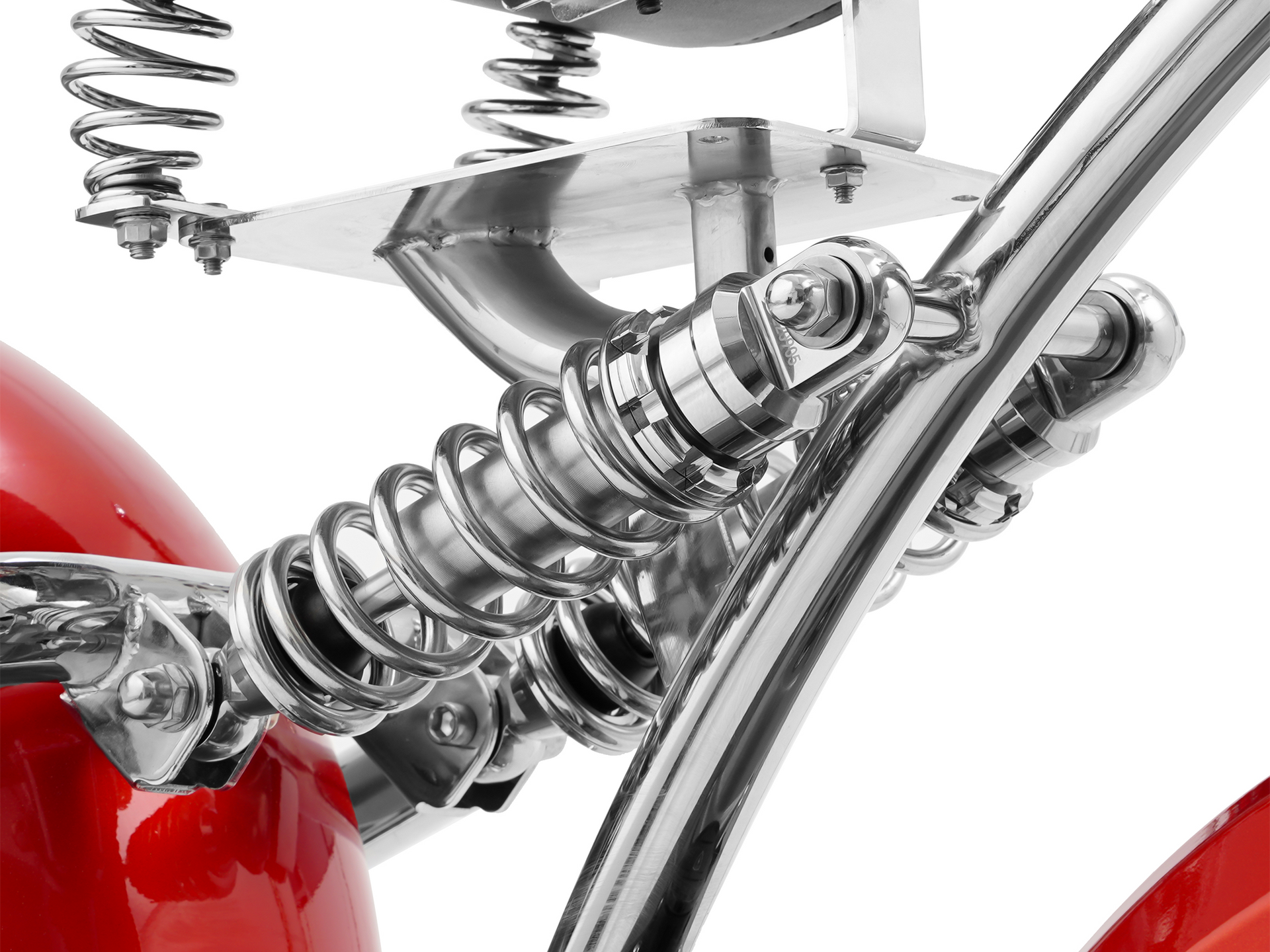

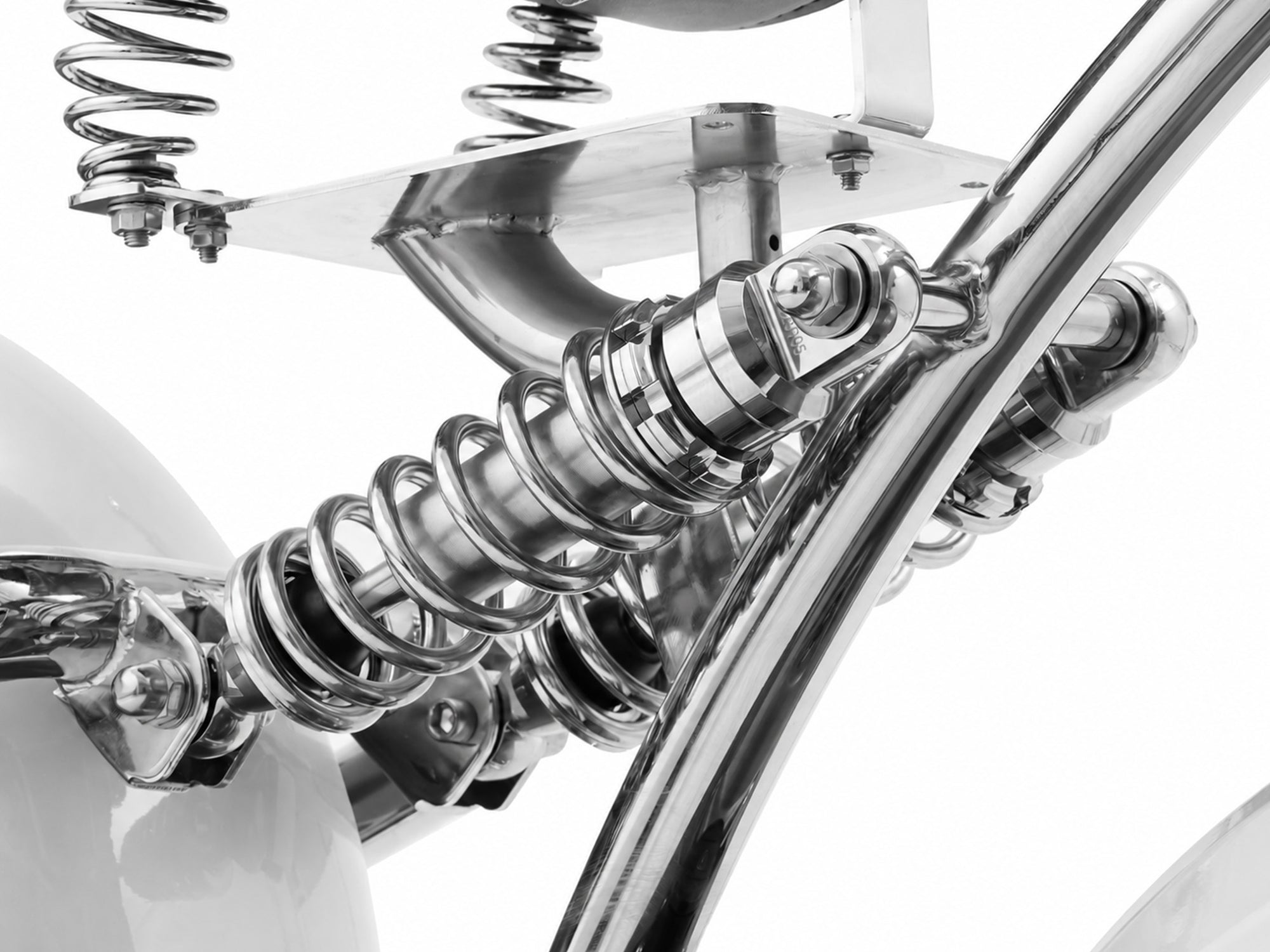

Rear Suspension
Hydraulic adjustable double suspension
Handlebar
Ape hanger handlebars
Grip
Comfort rubber ergo grips
Footrest
Foldable foot

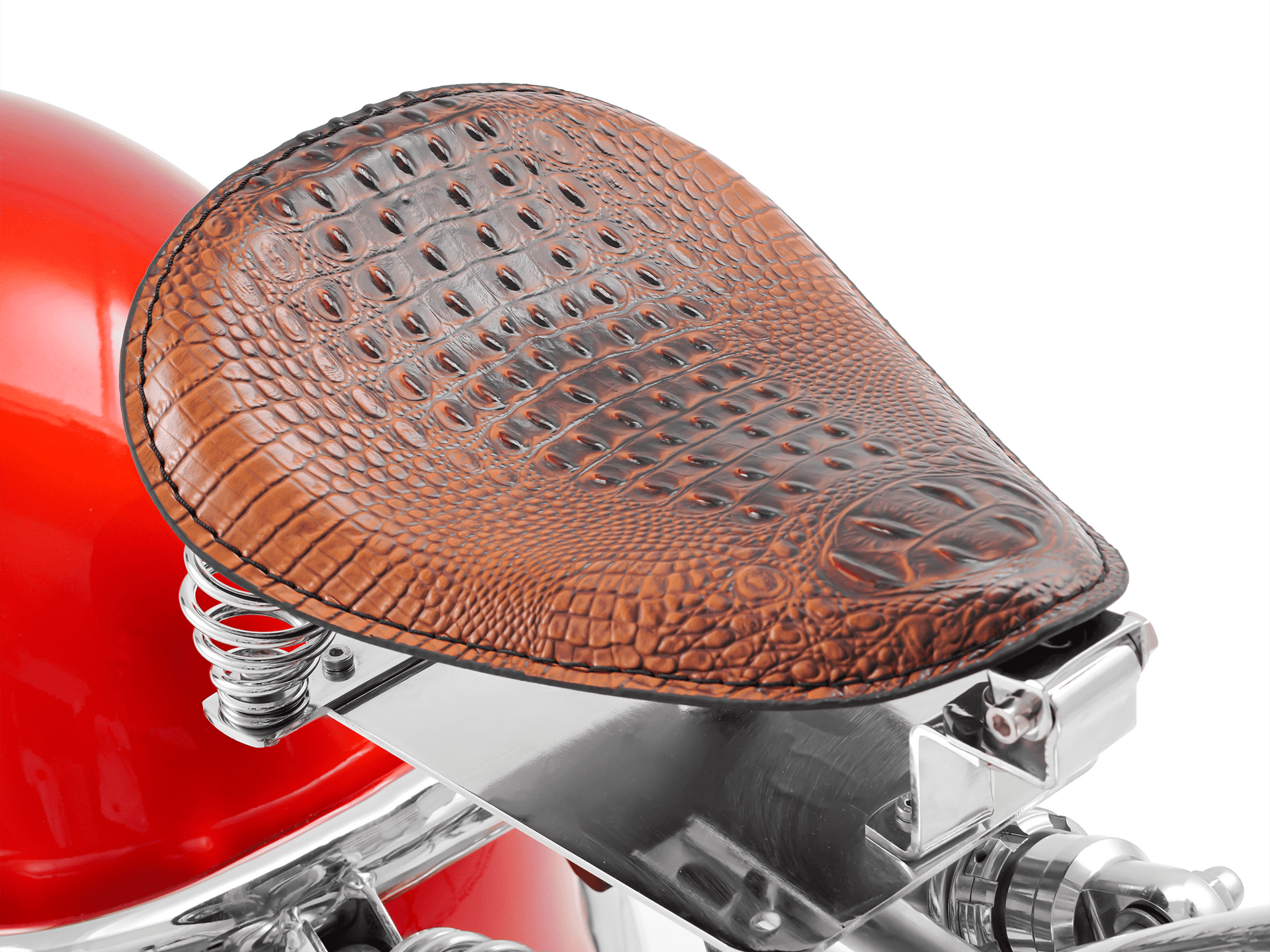

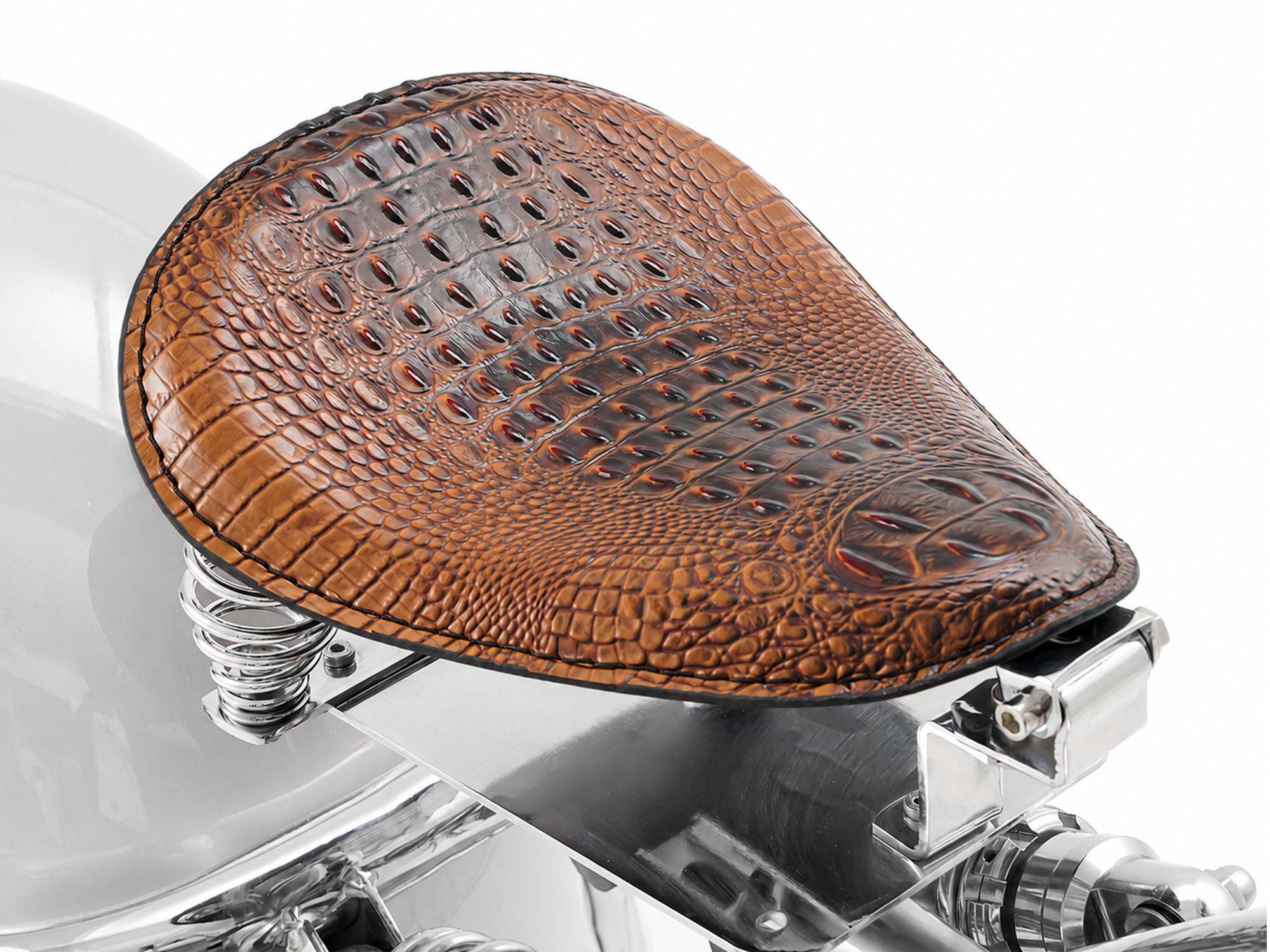

Seat
Straight grain synthetic leather seat(Size: 18.1*12.6IN )
