Eahora M2 Trike - Black
ABOUT M2 TRIKE
M2 trike is equipped with a 2000W powerful yet silent motor that can easily climb hills and navigate through rough terrains. This trike features a comfortable seat, suspension system, footrests, and handlebars, providing a comfortable and safe riding experience for everyone, including older riders, people with disabilities, and those who are not confident on two wheels.
WHAT'S IN THE PACKAGE
Delivered with 85% assembled:
Scooter & Battery;
Display & Phone holder & Rearview mirror;
Original charger & Charging cable;
Handlebar & Handlebar mount clamp;
Rear tire & Rear fenders;
Front tire & Front fenders;
Tail box & Rear rack;
Product manual & Toolkit & Remote control & Key.
Assembly Video
Street-Legal
All Eahora scooter comes with VIN, MCO, and Bill of sale
Free Shipping
Average 5~7 days delivery
1-Year Warranty
Technical support with high-quality standard
Quick Response
Respond within 24 hours
What Sets it Apart?
POWERFUL MID-DRIVE MOTOR
The Mid-Drive 2000-watt brushless motor is customed for our M2 Trike scooter with max torque 207 NM, which gives you a boost when conquering any terrains such as sand and dirt.
Torque: 207N.m
Gradeability: 30°
What Sets it Apart?
REMOVABLE LITHIUM BATTERY
Equipped with a power lithium battery, the M2 Trike gives you a max range of 68 miles. The removable battery allows you to charge anytime when you have access to a power outlet. Extended range and easily charge enables you travel with peace of mind on long trips.
Range: 37 - 68 miles (Level 1)
Parameter: 60V 40Ah
What Sets it Apart?
INTEGRATED CONTROLLER
60V 45AH integrated controller with R gear responsible for transferring the wires of the motor and other parts, achieves short-term acceleration and provides stable experience when commuting.

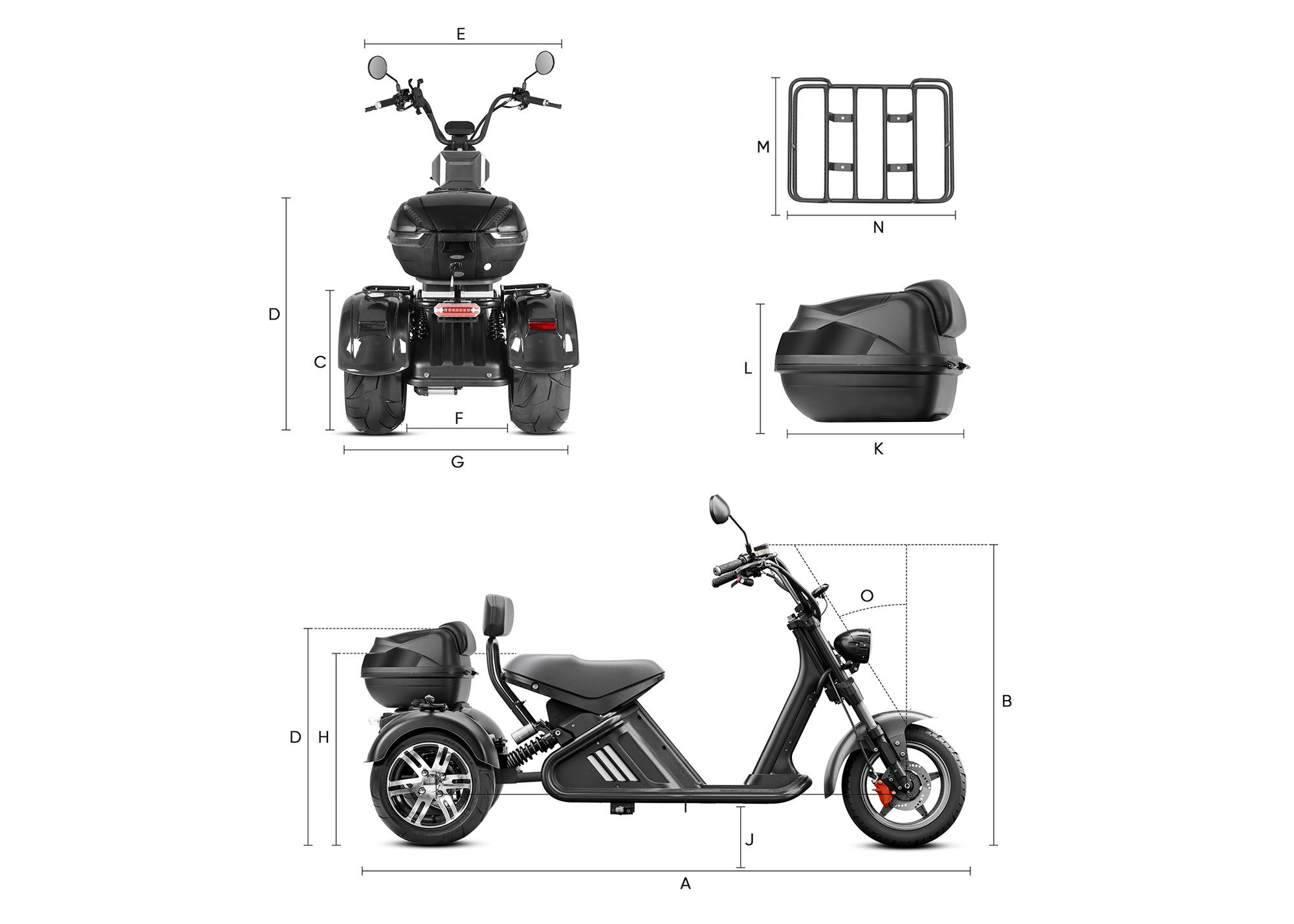

Size and Geometry
Recommended Rider Height: 5'1" - 6'6" or 155CM - 200CM
Maximum Load Capicity: 330LBS or 150KG
Ⓐ - Total Length: 86.4'' or 219.5CM
Ⓑ - Handlebar Height: 44.7'' or 113.5CM
Ⓒ - Rear Wheel Height: 21.7'' or 55CM
Ⓓ - Trunk Height: 34.64'' or 88CM
Ⓔ - Scooter Width: 32.28'' or 82CM
Ⓕ - Rear Tire Inside Distance: 17.12'' or 43.5CM
Ⓖ - Rear Tire Outside Distance: 33.26'' or 84.5CM
Ⓗ - Seat Height: 19.68'' or 50CM
Ⓘ - Wheelbase: 63.78'' or 162CM
Ⓙ- Ground Clearance: 8.07'' or 20.5CM
Ⓚ - Tail Box Length: 15.55'' or 39.5CM
Ⓛ - Tail Box Width: 11.61'' or 29.5CM
Ⓜ - Rear Rack Width: 11.69'' or 29.7CM
Ⓝ - Rear Rack Length: 16.25'' or 41.3CM
Ⓞ - Rake: 40°
Technical Specifications
To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Charging Time
4 ~ 6 hours
Range per Charge
37 - 68 miles (Level 1)
Scooter Weight
350 lbs in total with the battery.
Payload Capacity
Recommend rider weight within 330 lbs.
ELECTRONIC SYSTEM
ELECTRONIC SYSTEM
Motor
2000W brushless DC gear Mid- drive motor(Brand: JJ Motor) with 207NM max torque
Battery
60V 40AH lithium battery with BMS ( 2.7 KWH )
Charger
67.2V ~ 10A smart charger (Charging time: 4-6 H)
Display
6.7IN IP6 LCD display(showing MPH) with speedometer, odometer, trip odometer, throttle gear and more
Controller
60V 45A integrated controller with R gear (Brand: RK Controller)
Lights
Front: high low beam with turn signal light
Rear: integrated taillight with brake light, turn signal light and license plate light
Kickstand
Without kickstand
With wobbler handbrake
Wiring
Waterproof Integrated Harness
Waterproof Rates
IP66 Waterproof, including motor battery and wiring.
SCOOTER COMPONENTS
SCOOTER COMPONENTS
Frame
Seamless steel tube
Brakes
Hydraulic disc brakes with DOT 4 braking fluid (Brake rotor size: F 180 MM / R 180 MM)
6.9IN Lithium brake lever
Hub Wheel
Aluminum 12IN Rims(Width: F 2.75IN / R 2.75IIN )
Tires
With an average lifespan of 10000 miles, TNT Straight grain vacuum tubeless tires (F: 165/45-12 ; R: 215/40-12)
Fork
Hydraulic shock suspension(Length: 16.14IN )
Rear Suspension
Pneumatic hydraulic adjustable double suspension (Length: 10.24IN)
Handlebar
30 IN Ape hanger handlebars
Grip
Comfort rubber ergo grips
Footrest
Foldable foot
Seat
Straight grain synthetic leather double seat（Size: 21.3*12.2IN ）
How to register scooter?
- Over 20 states have successfully registered scooters for street legal riding.
- All models can be tracked down on DOT official site by querying unique frame code.
- Every scooter comes with Manufacturer's Certificate of Origin. Provide MCO to DMV when you register.
