Eahora 4000W M8S - Garnet
ABOUT M8S
M8S is designed for thrilling, fast-paced rides. Its advanced 4KW motor, coupled with cutting-edge Samsung battery technology, offers unmatched speed and acceleration on all terrains. M8S scooter is incredibly easy to control even in challenging terrains. Plus, the smooth ride and long-distance cruising are built for your comfort and reliability. Test your limits - enjoy effortless control over every ride like never before!
WHAT'S IN THE PACKAGE
Delivered with 85% assembled:
Scooter & battery;
Original charger & adapator;
Front tire & handlebar;
Pedals;
Front fenders;
Product manual;
Screws and tools for assembly.
Assembly Video
Street-Legal
All Eahora scooter comes with VIN, MCO, and Bill of sale
Free Shipping
Shipment within 24 hours, average 5~7 days delivery
1-Year Warrnaty
Technical support with high-quality standard
Quick Response
Respond within 24 hours
Electronic System
4000W UPGRADED MOTOR
The build-in high-performance motor with 4000W accelerates M8S scooter to the top of 178NM, providing an effortless experience on fast climbing or rough road. Enjoy speed, enjoy passion, enjoy fun!
Torque: 178N.m
Gradeability: 30°
Electronic System
SAMSUNG BATTERY
Equipped with a gigantic lithium battery, the M8S gives you a range of 70 miles. The removable battery allows you to charge anytime when you have access to a power outlet. Extended range and easily charge enables you travel with peace of mind on long trips.
Range: 60 - 70 Miles
Parameter: 72V 35Ah
Electronic System
INTEGRATED CONTROLLER
An integrated controller not only does it decreases the steady-state error but also safeguards your touring and commuting.

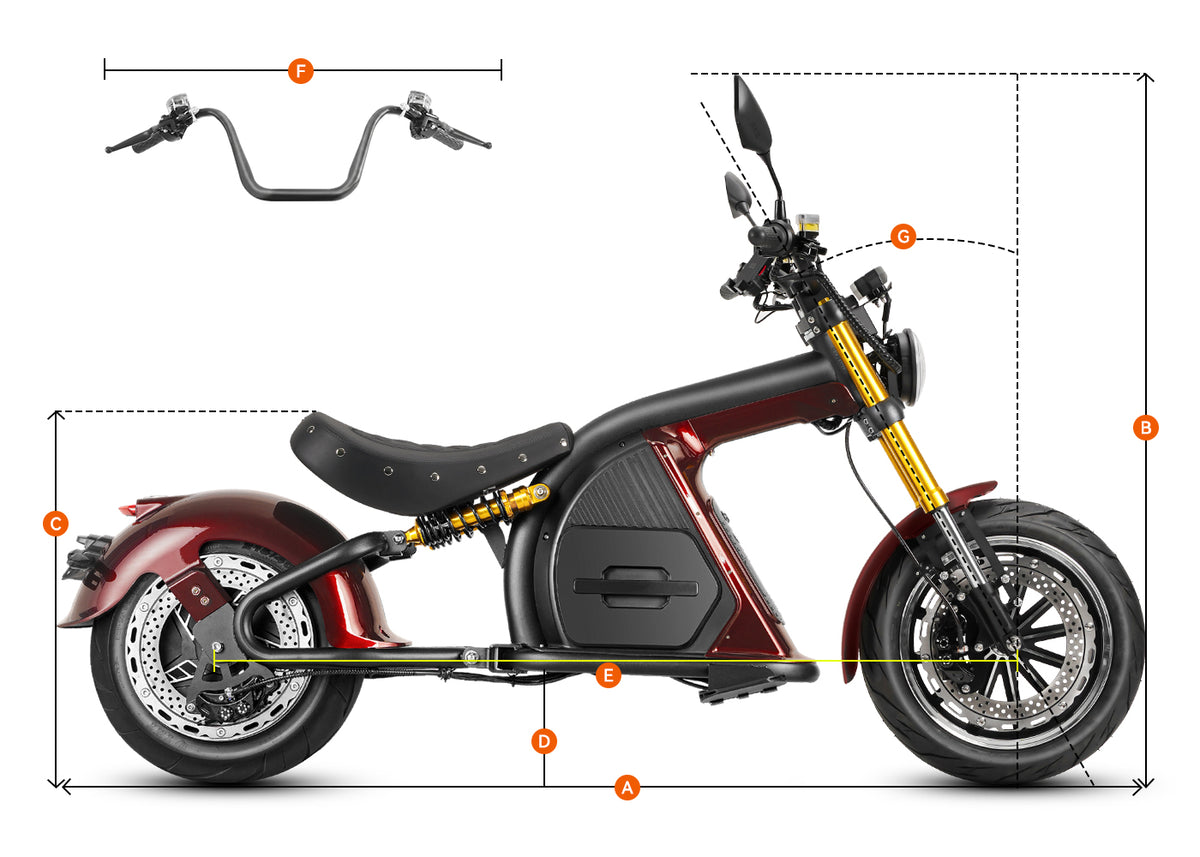

Size and Geometry
Recommended Rider Height: 5'1" - 6'6" or 155CM - 200CM
Ⓐ - Total Length: 74.8'' or 190CM
Ⓑ - Handlebar Height: 33.5'' or 95CM
Ⓒ - Seat Height: 25.6'' or 65CM
Ⓓ - Ground Clearance: 7.87'' or 20CM
Ⓔ - Wheelbase: 55.1'' or 140CM
Ⓕ - Scooter Width: 32.3'' or 82CM
Ⓖ - Rake: 30°
Technical Specifications
To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Charging Time
3 ~ 4 hours
Range per Charge
60 - 70 miles
Scooter Weight
187.4lbs in total with the battery.
Payload Capacity
Recommend rider weight within 440 lbs.
ELECTRONIC SYSTEM
ELECTRONIC SYSTEM
Motor
4000W brushless DC geared motor(Brand: QS Motor) with 170 NM max torque
Battery
72V 35AH SAMSUNG lithium battery with BMS (2.52 KWH)
Charger
72V ~ 13A fast charger (Charging time: 3-4 H), with anti-overcharging feature
Display
IP6 color LCD display(showing MPH) with speedometer, odometer, trip odometer, throttle gear and more
Controller
72V 70A integrated controller with P gear (Brand: YQ Controller)
Lights
Front: high low beam with turn signal light
Rear: integrated taillight with brake light, turn signal light and license plate light
Kickstand
Electric cut-off kickstand
Wiring
Waterproof Integrated Harness
Waterproof Rates
IP66 Waterproof, including motor battery and wiring.
SCOOTER COMPONENTS
SCOOTER COMPONENTS
Frame
Weldless steel tube
Brakes
Hydraulic disc brakes with DOT 3 braking fluid (Brake rotor size: F 318 MM / R 318 MM)
Hub Wheel
Aluminum 12IN Rims(Width: F 10.8IN / R 10.8IIN )
Tires
With an average lifespan of 6200 miles, TNT Straight grain vacuum tubeless tires (F: 120/40-12 ; R: 215/40-12)
Fork
Hydraulic shock suspension(Length: 28.1IN )
Rear Suspension
Hydraulic adjustable double suspension
Handlebar
North road handlebars
Grip
Comfort rubber ergo grips
Footrest
Foldable foot
Seat
Straight grain synthetic leather seat（Size: 19.7*13IN ）
How to register scooter?
- Over 20 states have successfully registered scooters for street legal riding.
- All models can be tracked down on DOT official site by querying unique frame code.
- Every scooter comes with Manufacturer's Certificate of Origin. Provide MCO to DMV when you register.
