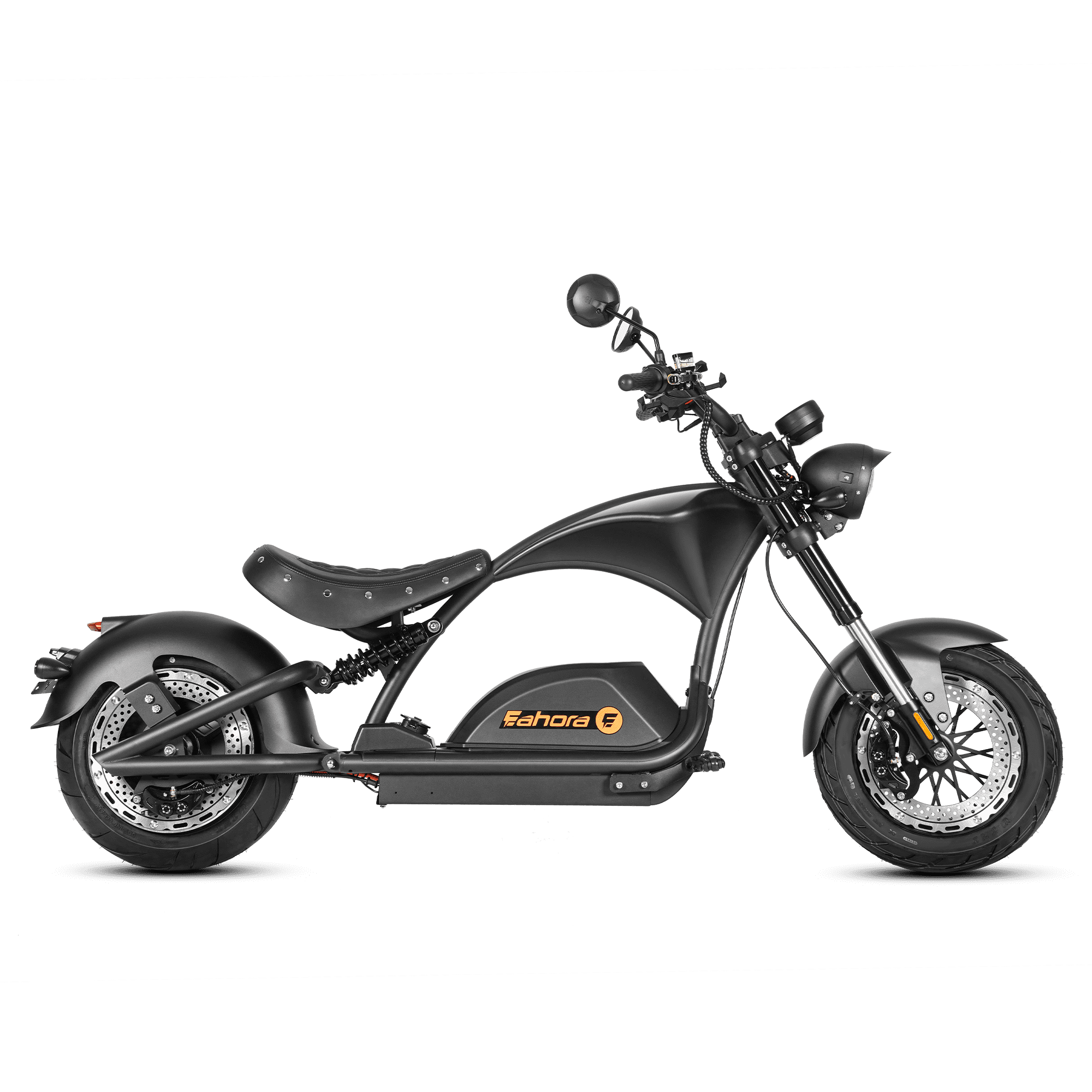

Eahora 4000W M1PS - Black
ABOUT M1PS
Feel unstoppable with its 4000W motor and Samsung battery providing power to tackle diverse terrain - from pavement to trails. M1PS features cutting-edge technology with adjustable settings to ensure smooth acceleration no matter what terrain you're tackling! Get ready to enjoy impressive results every time you hit the streets - all at lightning speeds.
WHAT'S IN THE PACKAGE
Delivered with 85% assembled:
Scooter & battery;
Original charger & adapator;
Front tire & handlebar;
Pedals;
Front fenders;
Product manual;
Screws and tools for assembly.
Assembly Video
Electronic System
4000W UPGRADED MOTOR
The build-in high-performance motor with 4000W accelerates M1PS scooter to the top of 170NM, providing an effortless experience on fast climbing or rough road. Enjoy speed, enjoy passion, enjoy fun!
Torque: 170N.m
Gradeability: 30°
Electronic System
SAMSUNG BATTERY
Equipped with a gigantic lithium battery, the M1PS gives you a range of 75 miles. The removable battery allows you to charge anytime when you have access to a power outlet. Extended range and easily charge enables you travel with peace of mind on long trips.
Range: 85 - 87 Miles
Parameter: 72V 40Ah
Size and Geometry
Recommended Rider Height: 5'1" - 6'6" or 155CM - 200CM
Ⓐ - Total Length: 83.46'' or 212CM
Ⓑ - Handlebar Height: 43.30'' or 110CM
Ⓒ - Seat Height: 25.59'' or 65CM
Ⓓ - Ground Clearance: 5.31'' or 13.5CM
Ⓔ - Wheelbase: 59.8'' or 152CM
Ⓕ - Scooter Width: 33.46'' or 85CM
Ⓖ - Rake: 40°
Technical Specifications
To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Charging Time
3 ~ 4 hours
Range per Charge
85 - 87 miles
Scooter Weight
198.4 lbs in total with the battery.
Payload Capacity
Recommend rider weight within 440 lbs.
ELECTRONIC SYSTEM
ELECTRONIC SYSTEM
Motor
4000W brushless DC geared motor(Brand: QS Motor) with 170 NM max torque
Battery
72V 40AH SAMSUNG lithium battery with BMS (2.88 KWH)
Charger
72V ~ 15A fast charger (Charging time: 3-4 H)

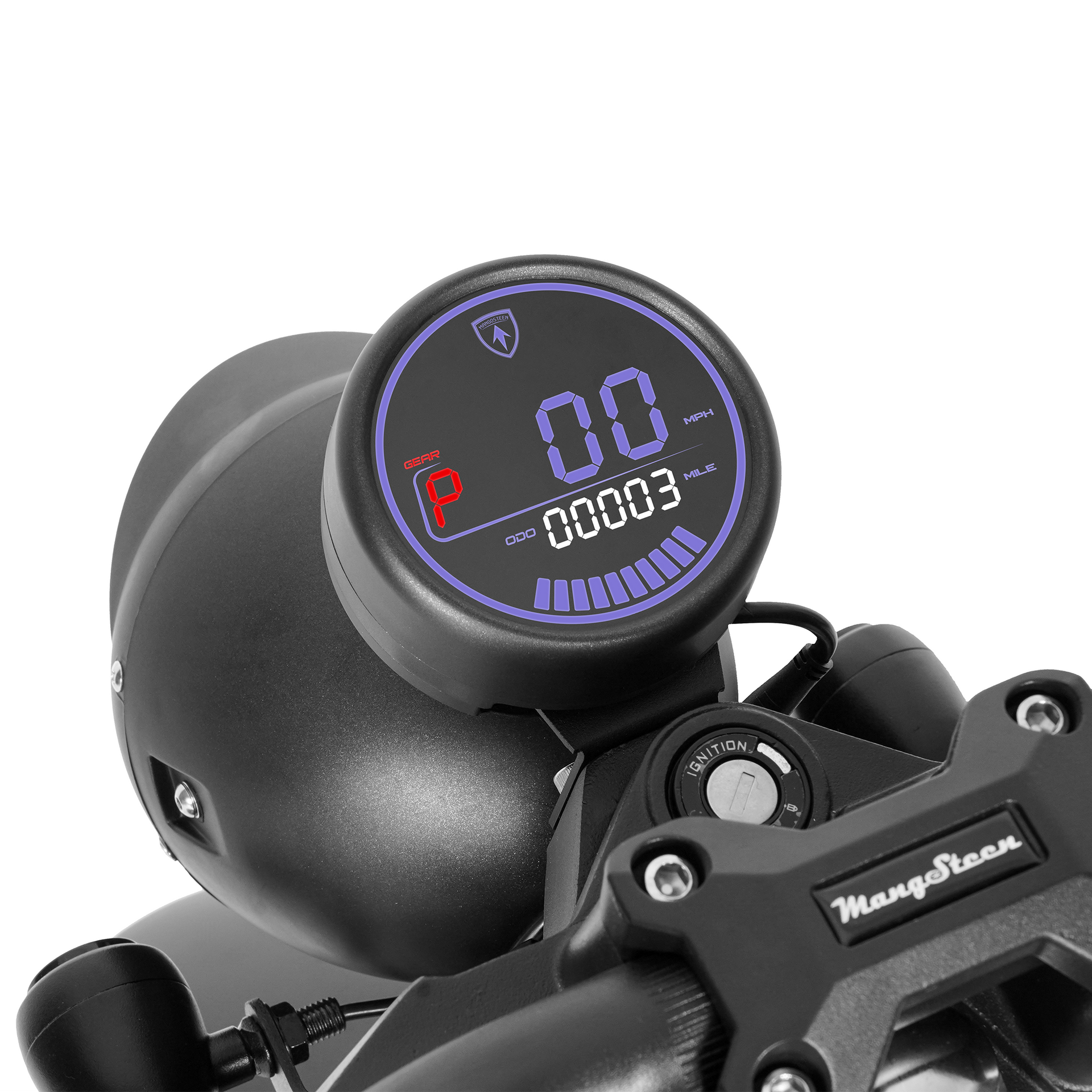

Display
IP66 color LCD display(showing MPH) with speedometer, odometer, trip odometer, throttle gear and more
Controller
72V 150A integrated controller with P gear (Brand: YQ Controller)

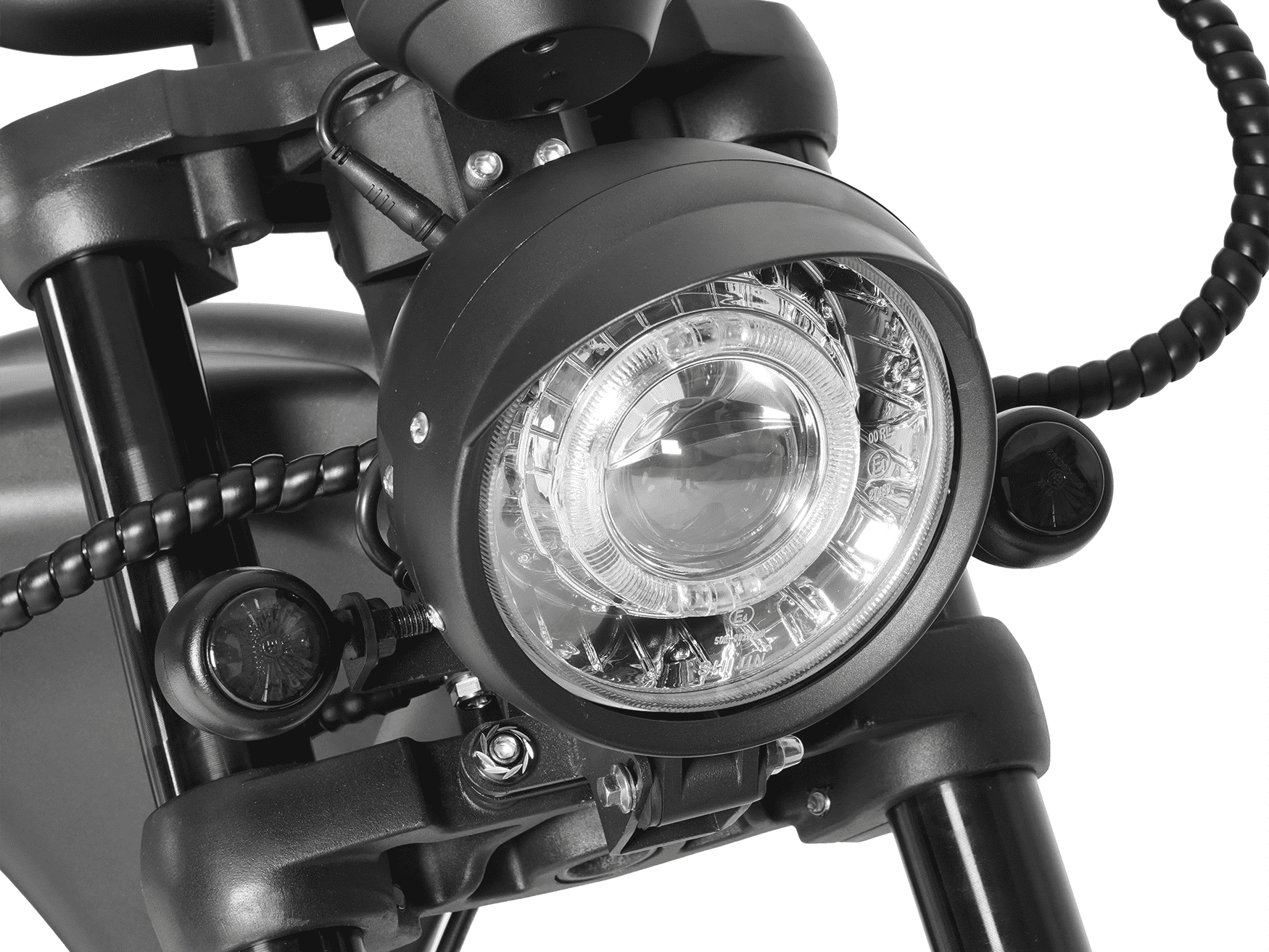

Lights
Front: high low beam with turn signal light
Rear: integrated taillight with brake light, turn signal light and license plate light
Kickstand
Kickstand without electirc cut-off
Wiring
Waterproof Wring Harness
SCOOTER COMPONENTS
SCOOTER COMPONENTS
Frame
Weldless steel tube

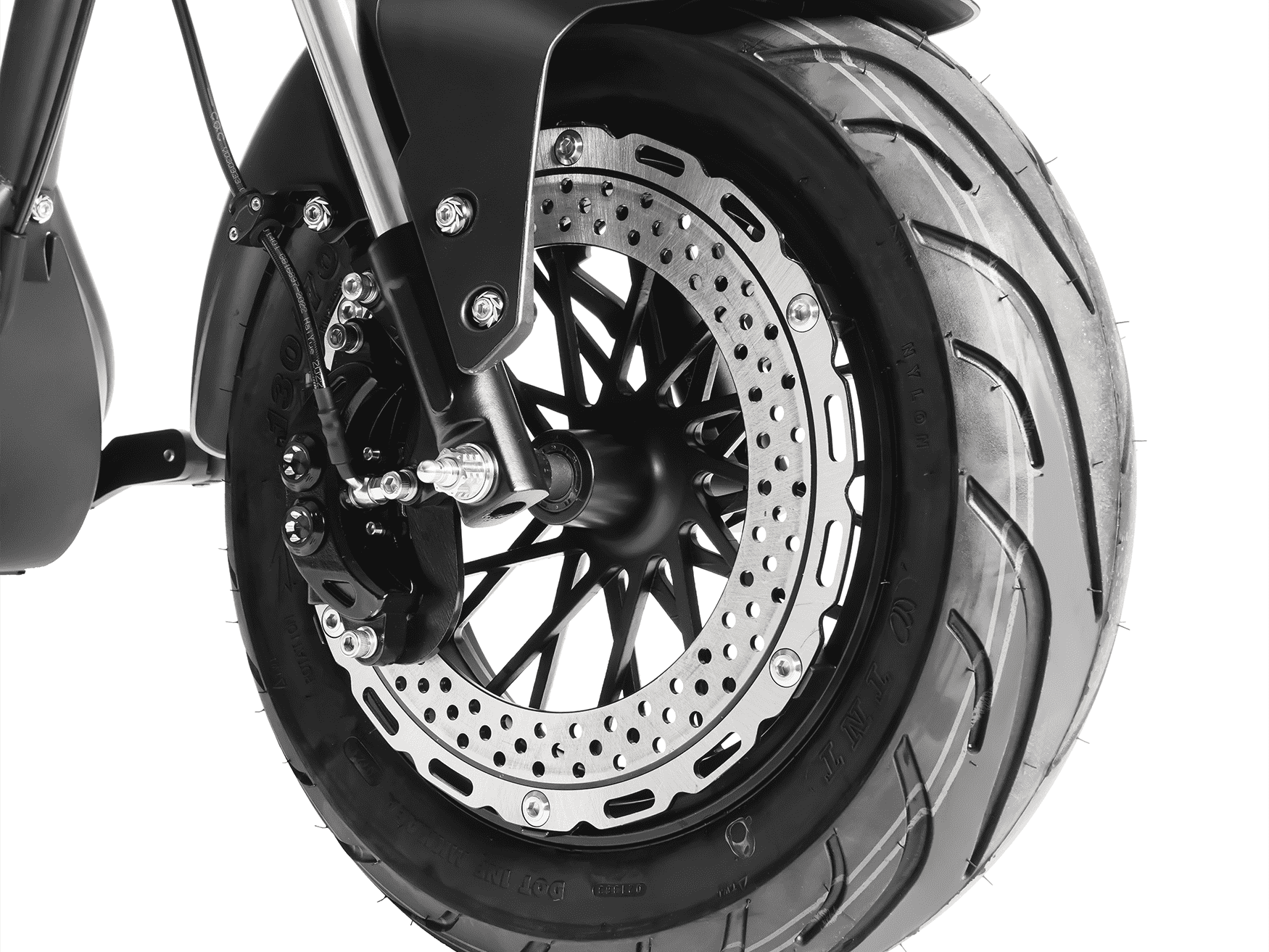

Brakes

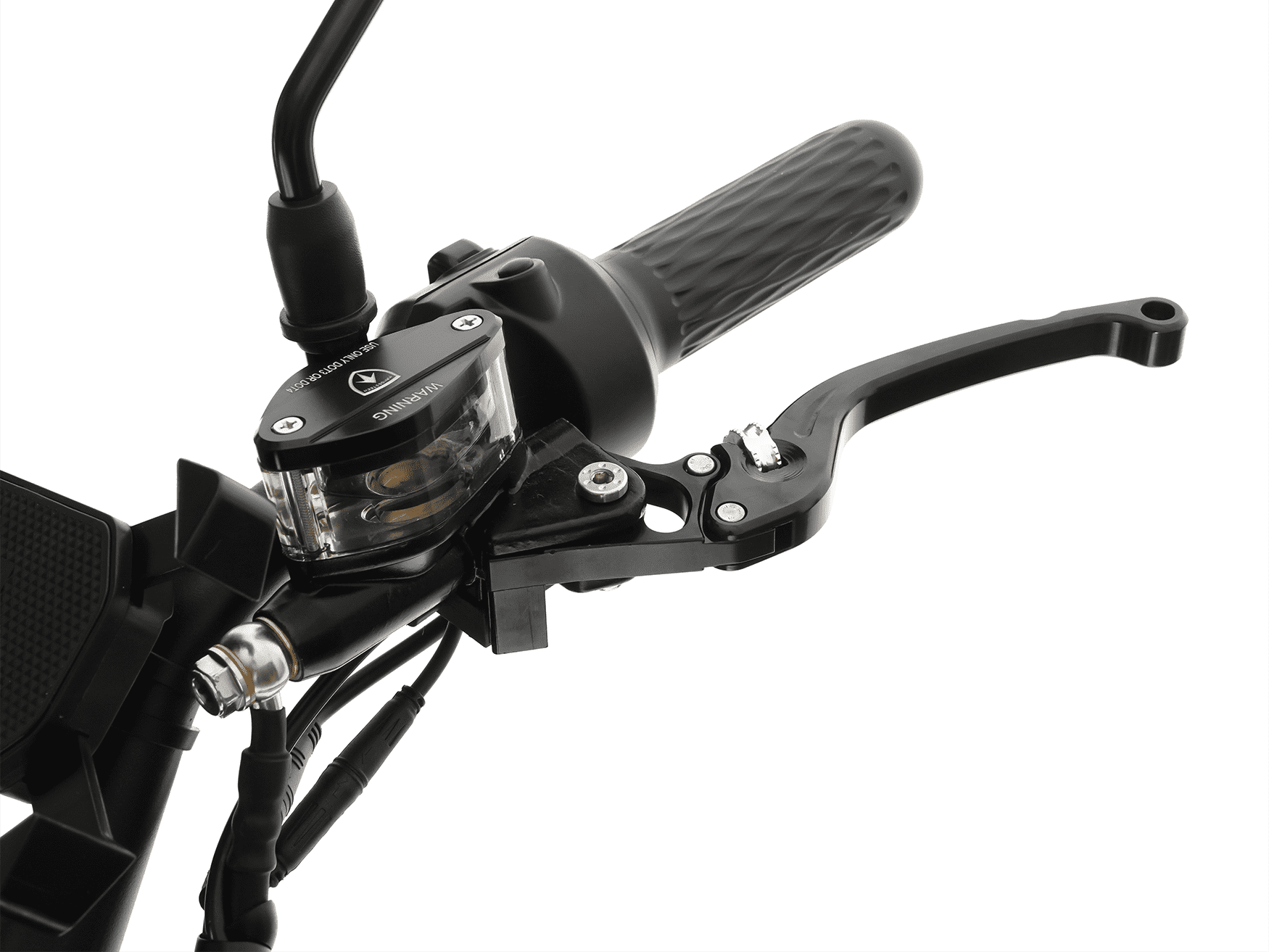

Hydraulic disc brakes with DOT 3 braking fluid (Brake rotor size: F 318 MM / R 318 MM)
Hub Wheel
Aluminum 12IN Rims(Width: F 10.8IN / R 10.8IIN )
Tires
TNT Straight grain vacuum tubeless tires (F: 120/40-12 ; R: 215/40-12)

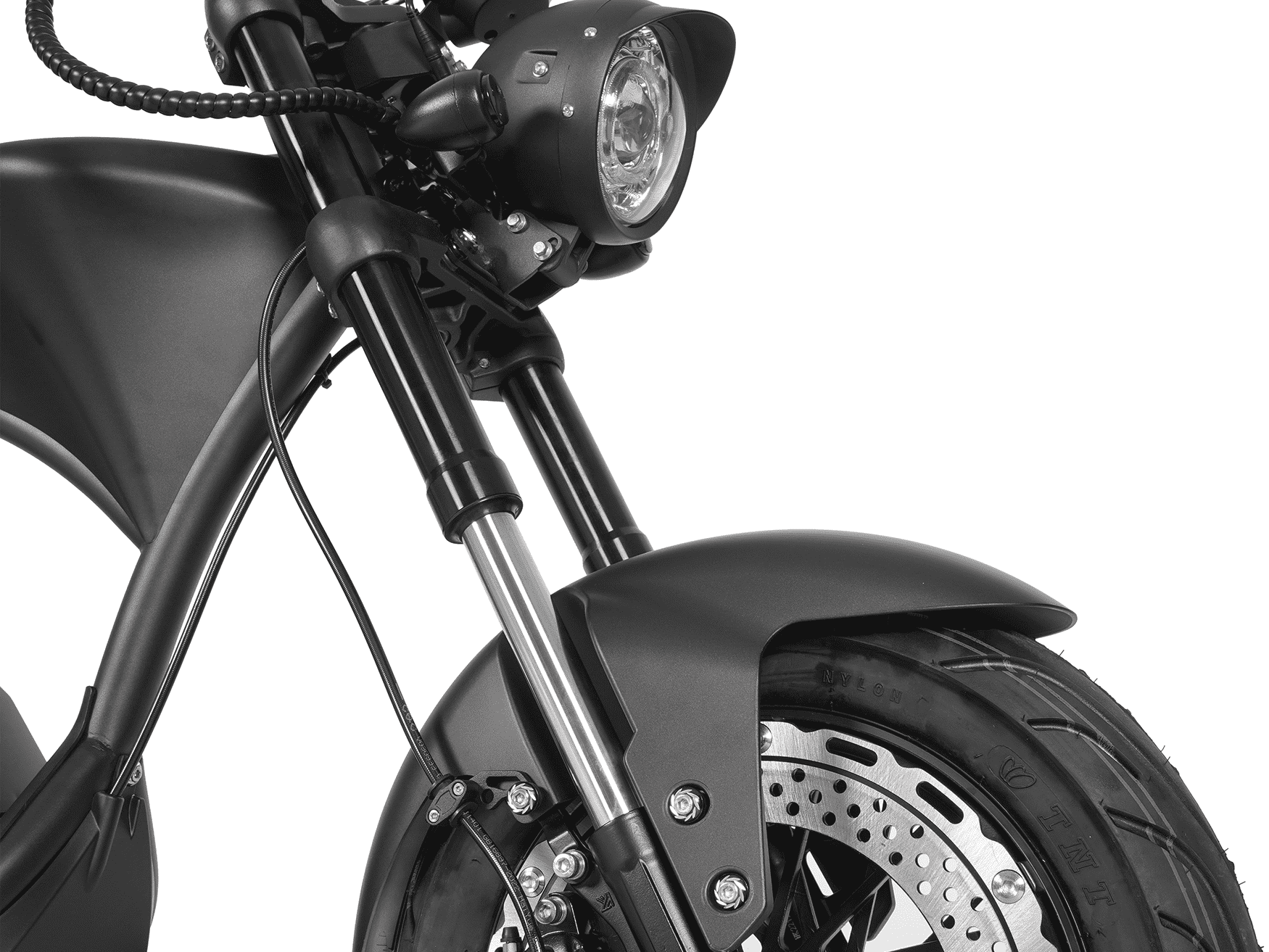

Fork
Hydraulic shock suspension(Length: 28.1IN )
Rear Suspension
Hydraulic adjustable double suspension
Handlebar
Ape hanger handlebars
Grip
Comfort rubber ergo grips
Footrest
Foldable foot

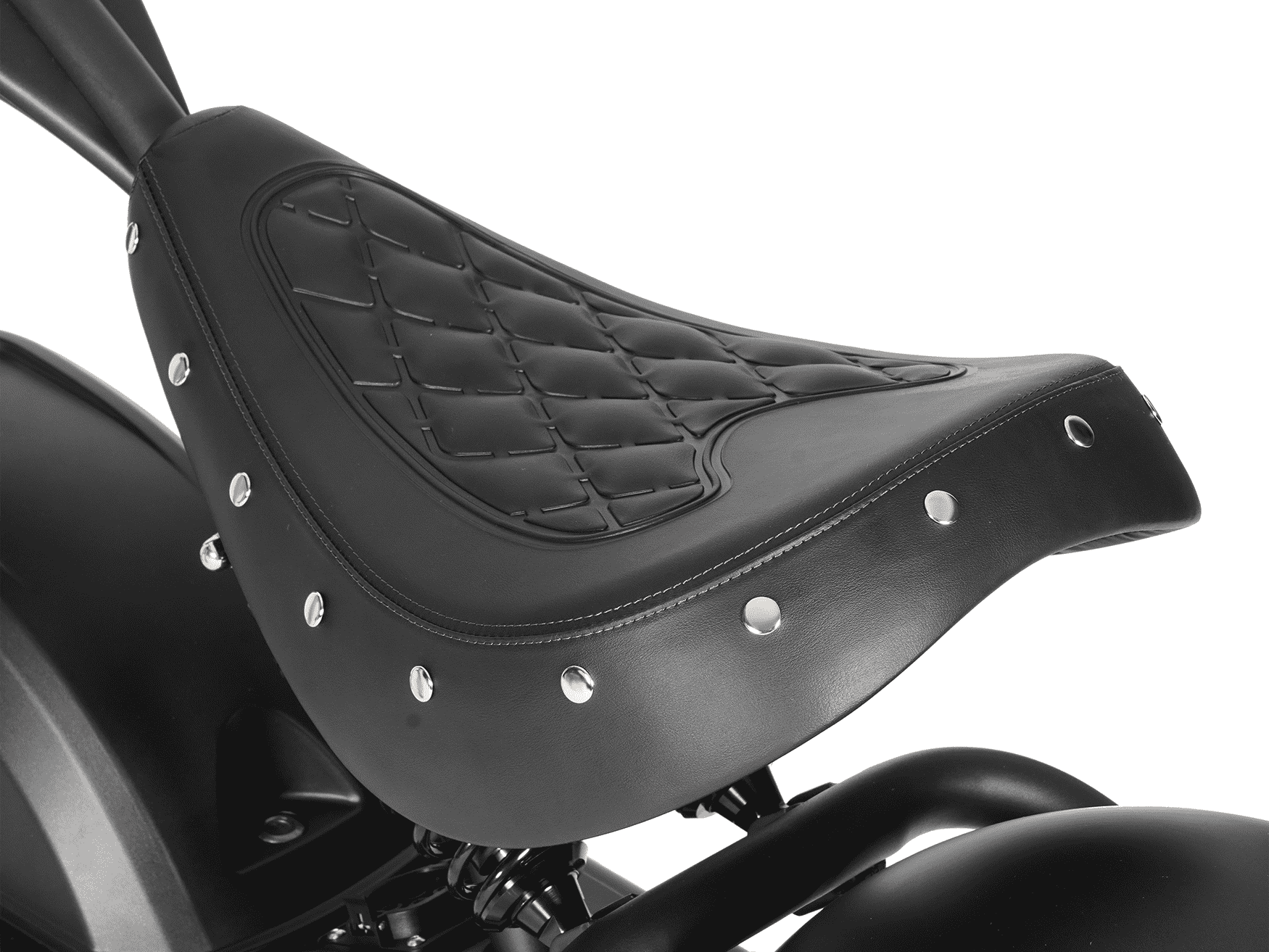

Seat
Straight grain synthetic leather seat（Size: 19.7*13IN ）
How to register scooter?
- Over 20 states have successfully registered scooters for street legal riding.
- All models can be tracked down on DOT official site by querying unique frame code.
- Every scooter comes with Manufacturer's Certificate of Origin. Provide MCO to DMV when you register.
